Best Pirce ⭐ Mikado Logo 600 Electric Helicopter Kit ⭐

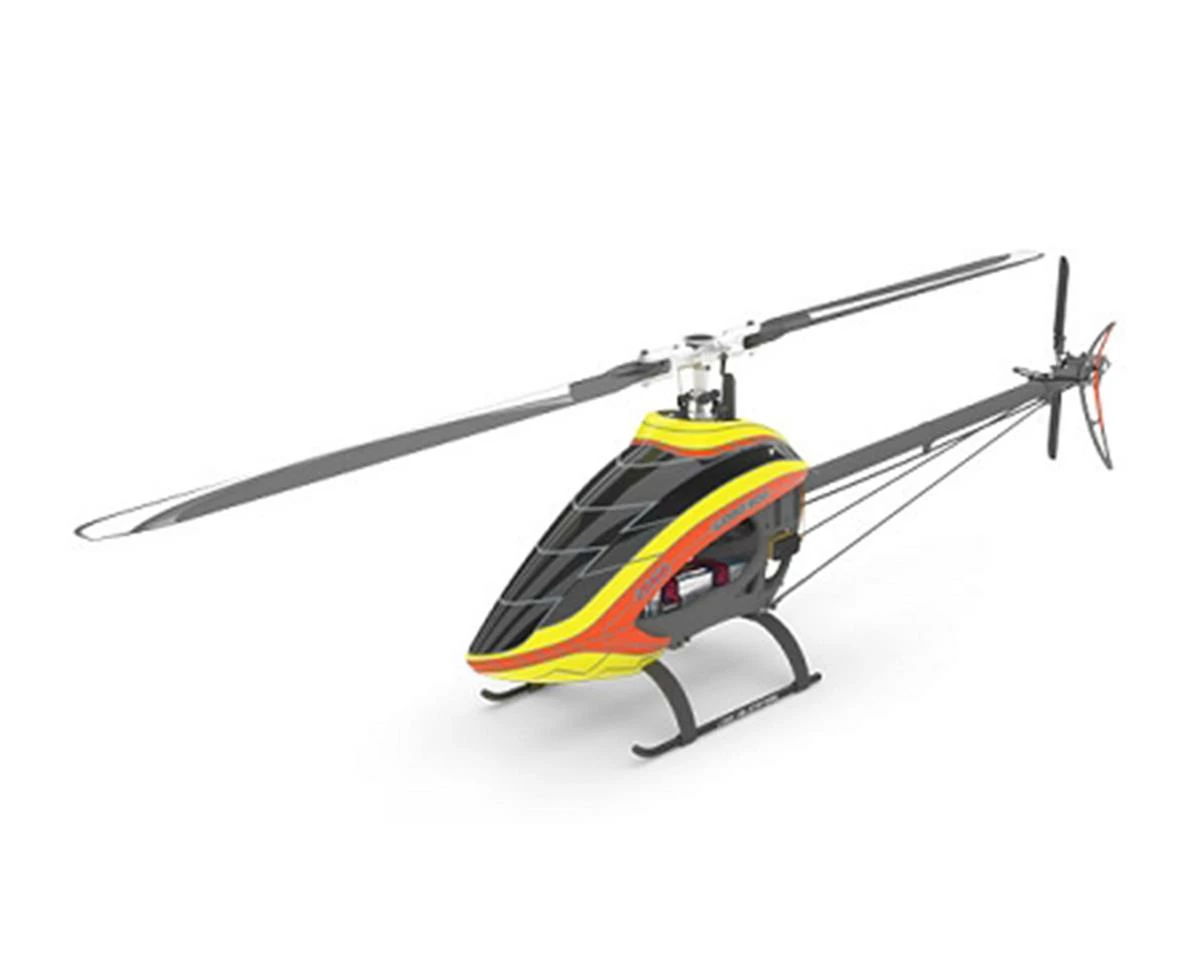

The Logo 600 Electric Helicopter combines years of Mikado heritage by utilizing the incredible Logo 600SX helicopter as a platform for improvement to meet the demands of the current helicopter market. The Logo 600 now features a full Aluminum Rotor Head, 8mm spindle shaft and larger thrust bearings, imrpvoed one-way bearing, larger swashplate for incredible geometry through all collective and cyclic inputs, updated horizontal and vertical fin sets with color accents for improved visibility, and a signature style canopy similar to that of the Logo 700 helicopter.

Specifications:
Rotor Diameter: 1350-1450mm
Rotor Blades: 600-620mm
RTF Weight: 3400g (Estimated)
Recommended Battery: 10s-12s 3300-5000 mAh Li-Po
Main Gear Ratio: 7.1-10.6 (Gearing Dependent)
Main Gear Size: 106 teeth/Mod 1 Herringbone
Battery Slot: 62 x 54 x 300mm (HxWxL)
Length: 1250mm
Height: 360mm
Width: 210mm

Includes:

• Mikado Logo 600 Kit
• Mikado Aluminum Rotor Head
• Motor Counter Bearing & Integrated Mainshaft Support (6mm Motor Shaft)
• Assembly Manual
• 600mm Carbon Fiber Blades
• Carbon Fiber Tail Rotor Blades
• Yellow/Orange Painted Fiberglass Canopy

Needed to Complete:

• Brushless Motor: 400-600kV, 30mm Mounting Holes
• Herringbone Pinion Gear (Mod 1 w/ Standard Main Gear)
• 100-130A Brushless ESC
• 10s – 12s (37-44.4V) Li-Po 3300-5000mAh 45C or higher
• (3) “Fullsize/Standard” Cyclic Servos
• (1) “Fullsize/Standard” Tail Servo
• Flybarless Gyro
• 6+ Channel Radio System
• 6+ Channel Receiver
• Battery Charger
• Misc. Building Tools & Accessories

This product was added to our catalog on September 13, 2017
