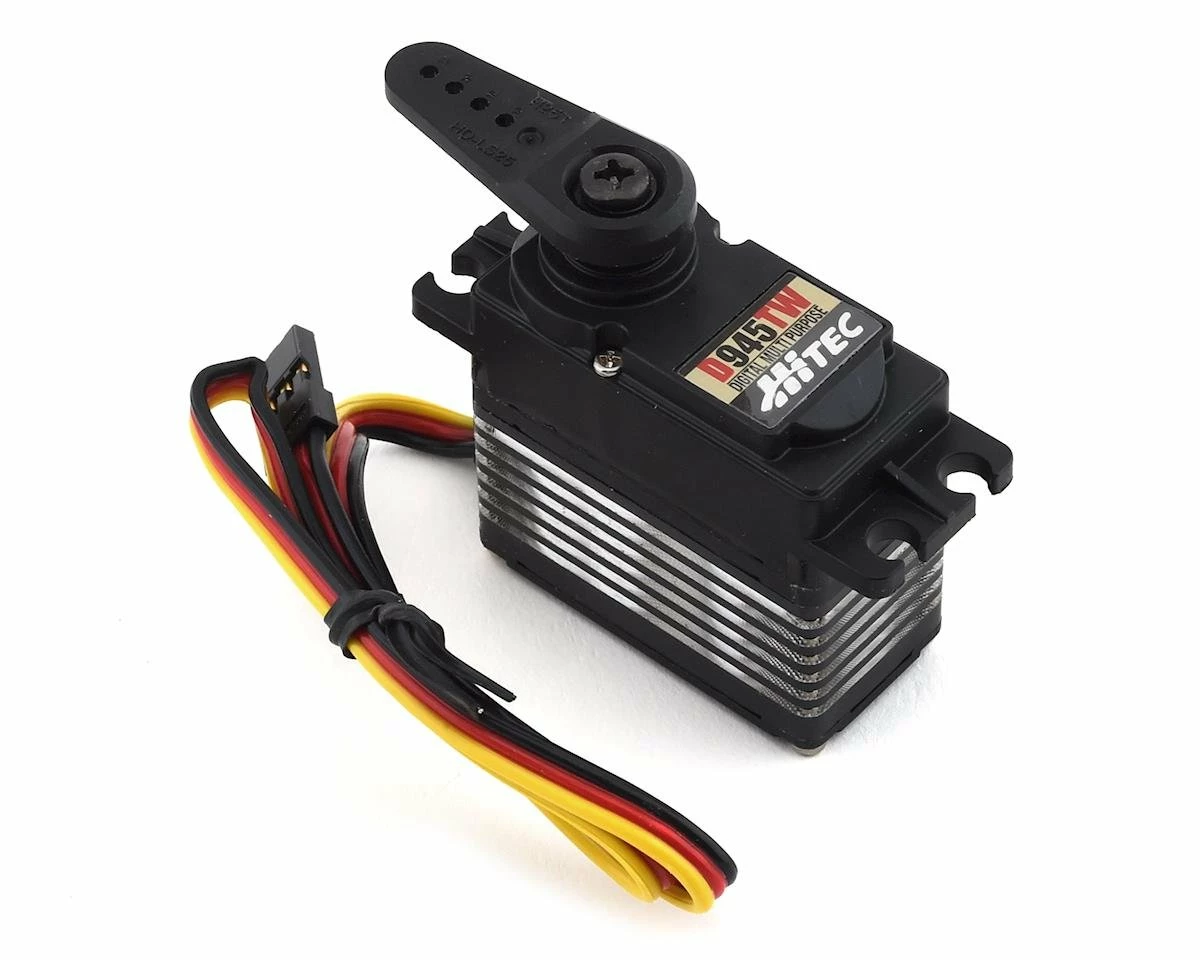

This is a Hitec High Voltage D945TW D-Series Ultra Torque Titanium Gear Digital Servo, designed using Hitec’s redesigned, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Features:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°): 0.16 ~ 0.12 ~ 0.10
Maximum Torque Range oz./in.: 194 ~ 250 ~ 319
Maximum Torque Range kg./ cm.: 14.0 ~ 18.0 ~ 23.0
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 470 mA
Stall Current Draw: 6,200 mA
Dead Band Width: 1 µs
Dimensions (Inches): 1.57 x 0.79 x 1.50
Dimensions (Metric): 40.0 x 20.0 x 38.0
Weight (Ounces): 2.4
Weight (Gram): 68.0
Circuit Type: 32bit Programable Digital
Motor Type: Coreless Metal Brush
Gear Material: Titanium
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): H25T
Case Material: Plastic/Aluminum
Dust/Water Resistance Splash Proof: Yes
Connector Gauge (AWG)/Strand Count: 20/80

Accessories:

• Titanium Gears Set | Link |
• Metal/Karbonite 1st Gear Set | Link |
• Plastic/Aluminum Case Set | Link |

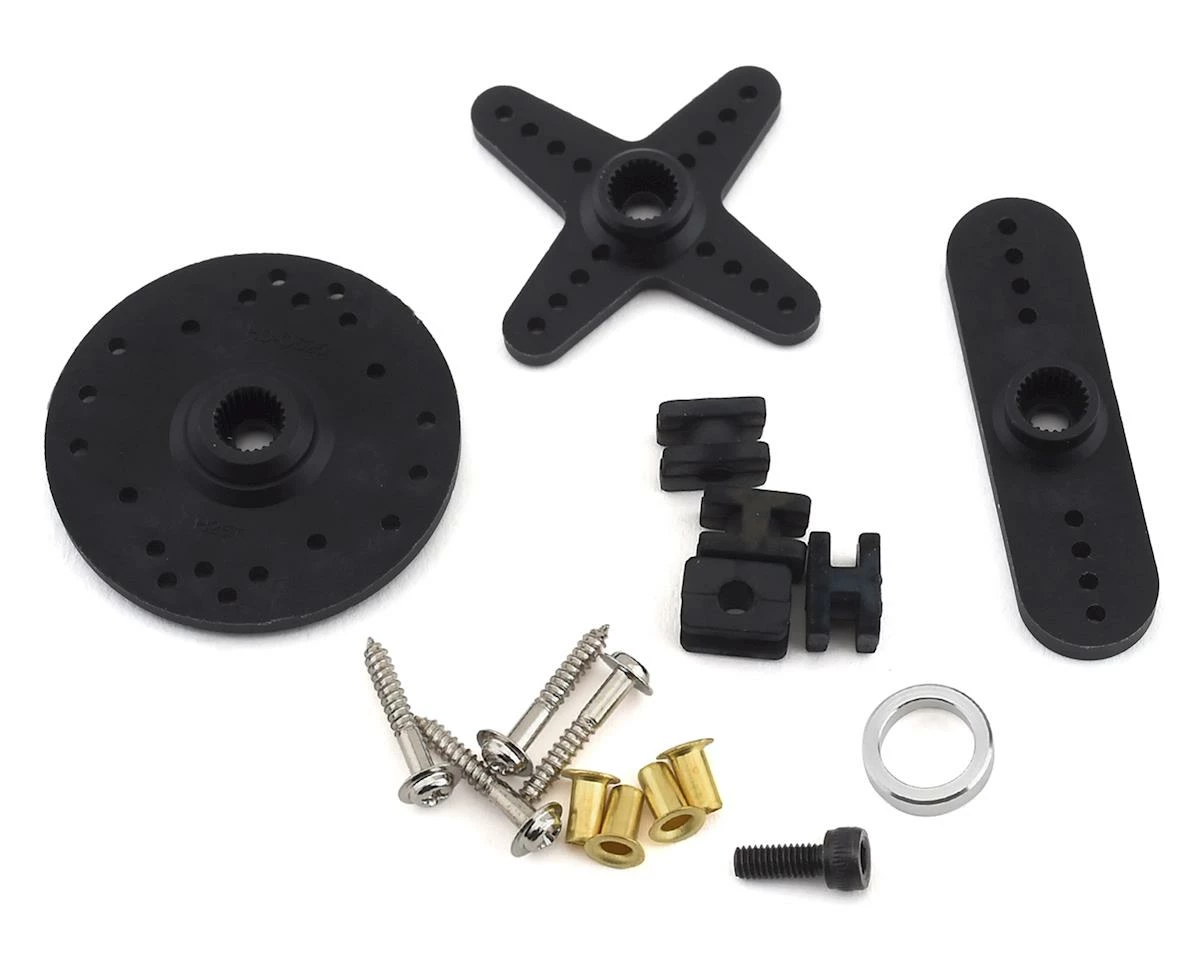

• Applicable Horns | Link 1 • 2 |

This product was added to our catalog on November 25, 2019
