Best reviews of 🧨 Mikado VBar VControl Current/Voltage/Capacity Sensor ❤️

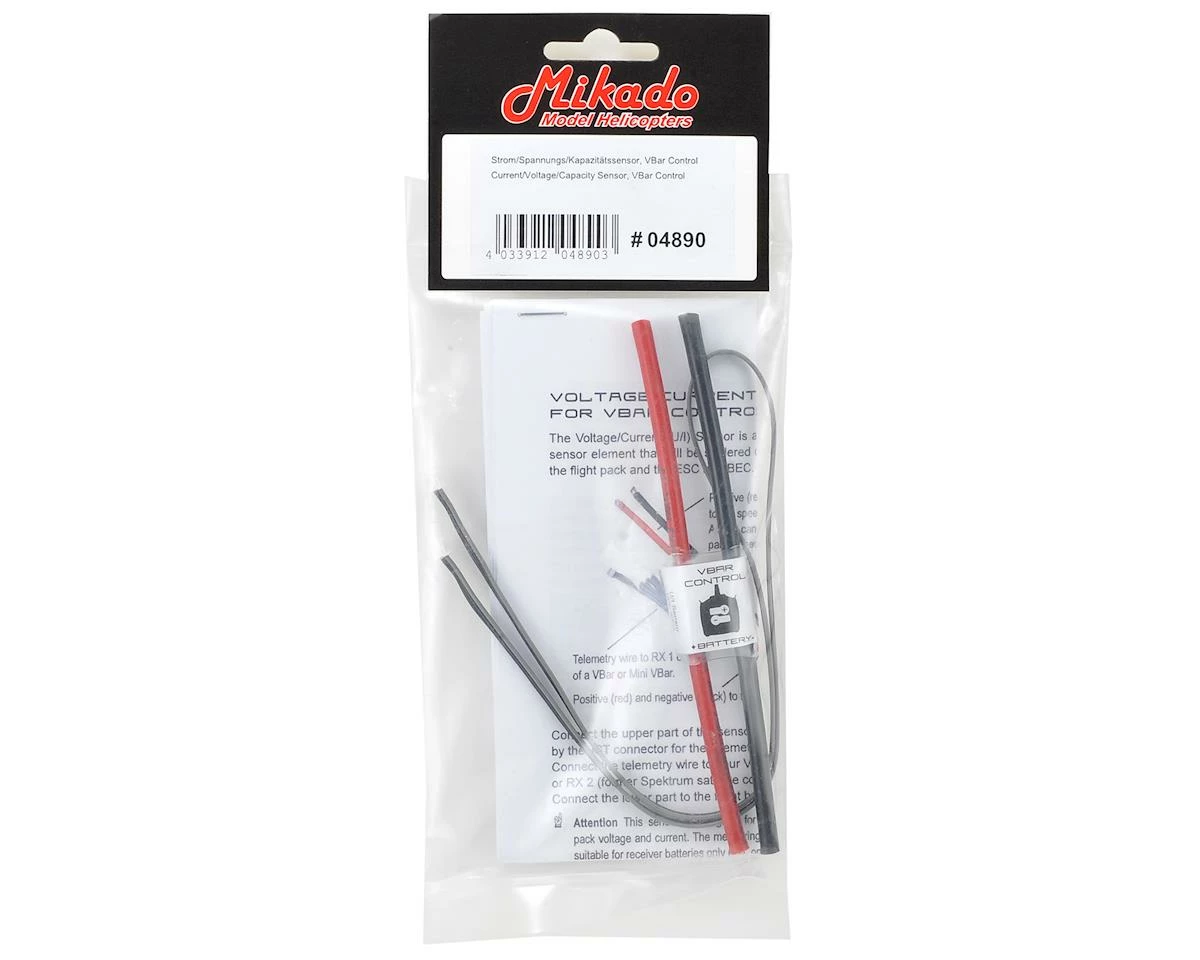

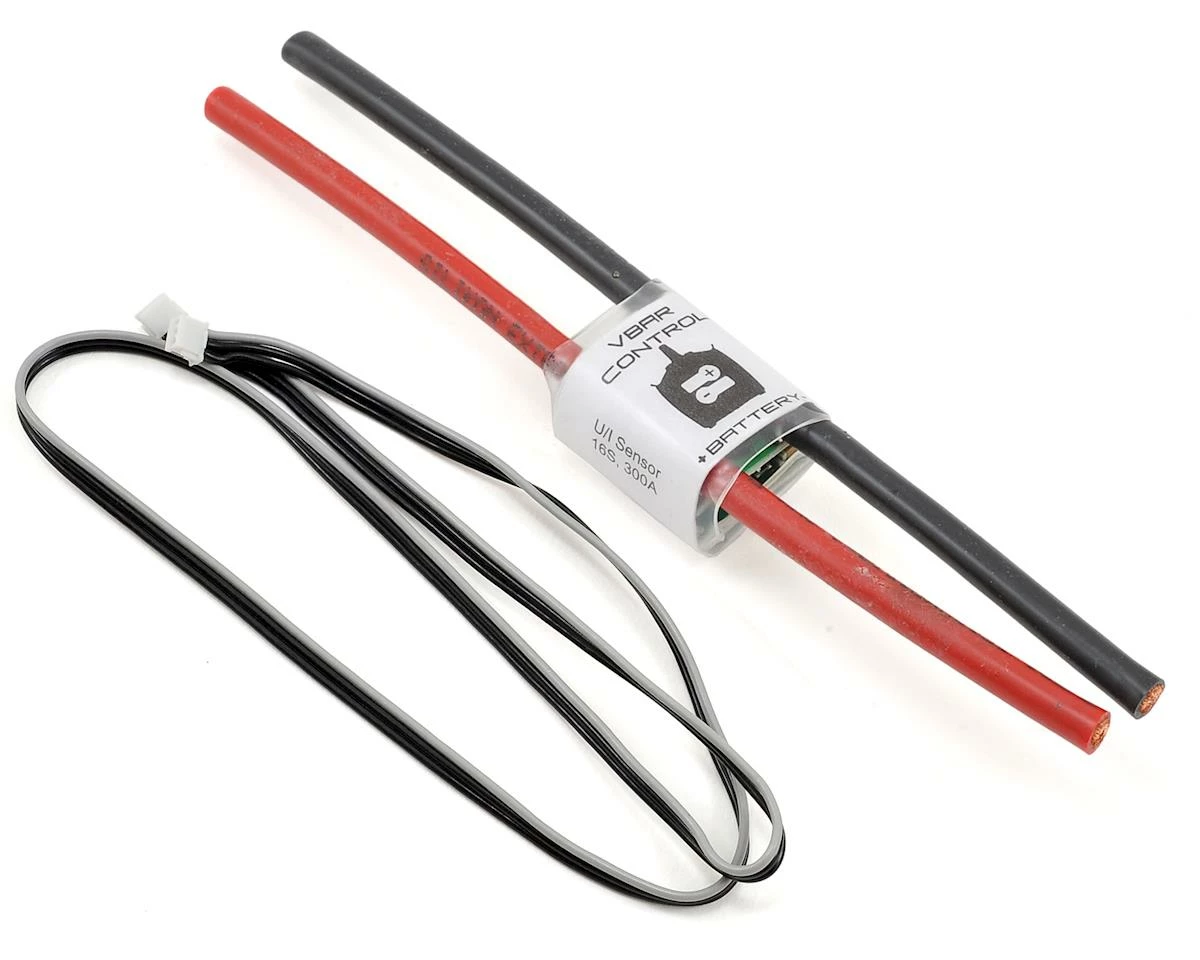

This is the Mikado VBar Control Current/Voltage/Capacity Sensor. This Voltage/Current (U/I) Sensor is a small but powerful sensor element that can be soldered or plugged between the flight pack and the ESC and BEC.

Features:

• Individual precision calibrated
• Optocoupler
• Reverse battery protection
• No influence from motor or current carrying wires

Software Support:

• Direct displaying from voltage and capacity
• Max. current and min. voltage storage
• Logfile data from the flight
• Battery Logbook with names
• Adjustable capacity, residual capacity and voltage for each battery
• Residual capacity is shown as bar in the radio display
• Overdischarge Warning
• Warning at use of not fully charged batteries
• Loud speaker announcement for reducing battery capacity

Specifications:
Power rating: constant 120A, peak load: 330A
Measuring range current: 0,1A-300A
Measuring range voltage: 5-100 V (2S-16S LiPo)
Resolution: 0.01A / 0.01V
Current consumption: 2.5mA

This product was added to our catalog on May 12, 2015
