Budget 😀 Hitec HSB-9381TH Ultra Torque Brushless Titanium Gear Servo (High Voltage) 🎁
Original price was: $189.99.$62.00Current price is: $62.00.
- Peace of Mind with Every Purchase
- Product guarantee 100% satisfaction
- Reliable Payments for Reliable Shopping
- Discover a world of quality products.

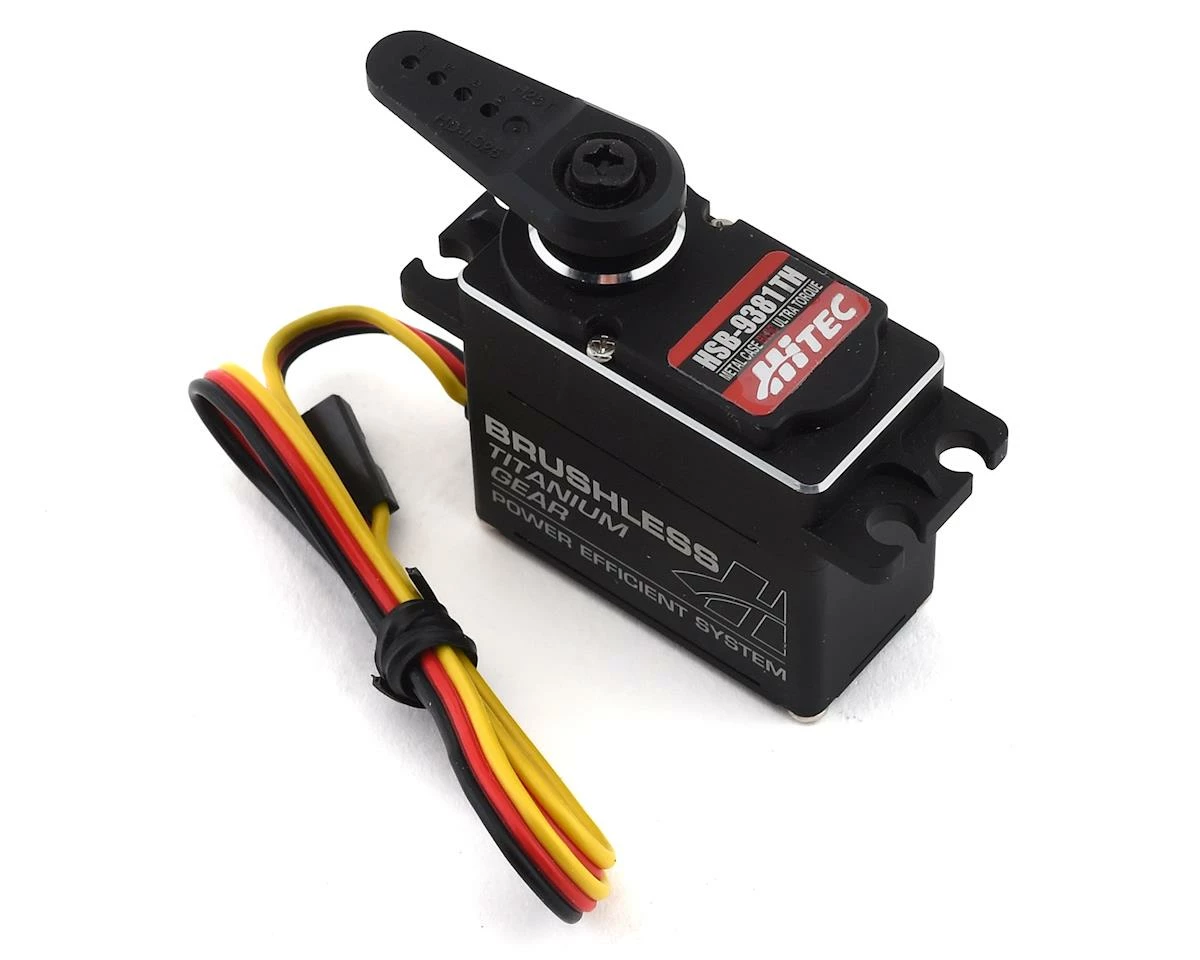

Hitec HSB-9381TH Ultra Torque Brushless Titanium Gear Servo. With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the full metal case HSB-9381TH is the perfect match for the most demanding airplane pilots and racers.
Features:
- Programmable 12-Bit PWM Digital Amplifier
- Custom Long Life Brushless Motor
- 1M Cycle Long Life Potentiometer
- Constant Output Torque
- Wide Operating Voltage (5 ~ 9 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- Dust Resistant and Splash Proof Case
- 25-Tooth Output Spline
- Hybrid Nylon Reinforced Plastic and Aluminum Case
- Low Power Consumption
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Data Save / Load
- Program Reset (From File)
Specifications:
Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
Speed (Second @ 60°): 0.17 ~ 0.14
Maximum Torque Range oz. / in.: 472
Maximum Torque Range kg. / cm.: 34
Current Draw at Idle: 27 mA
No Load Operating Current Draw: 250 mA
Stall Current Draw: 2,700 mA
Dead Band Width: 1 µs
Dimensions (Inches): 1.57 x 0.79 x 1.50
Dimensions (Metric): 40.0 x 20.0 x 38.0
Weight (Ounces): 2.4
Weight (Gram): 72.0
Circuit Type: EBL Digital
Motor Type: Brushless
Gear Material: Titanium
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): H25T
Case Material: Plastic / Aluminum
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 20 / 80
This product was added to our catalog on December 6, 2019
