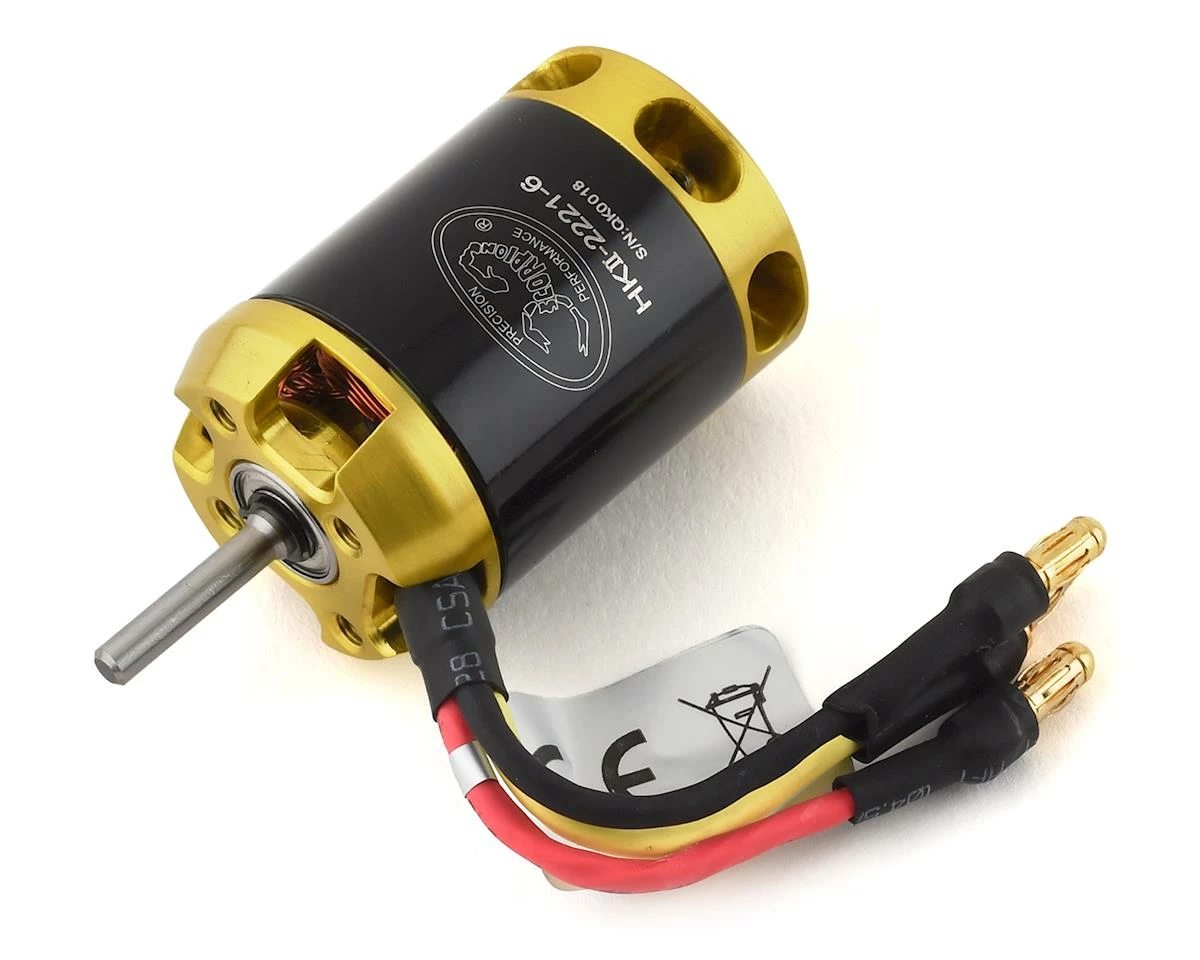

Budget ⌛ Scorpion HKII-2221-6 V2 Brushless Motor (525W, 4400Kv) 🎉

This is the Scorpion HKII-2221-6 V2 Brushless Motor. The Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand temperatures of up to 200 degrees C (392 F).

All Scorpion HK Series 22mm motors come with 3.5mm male Bullet style connectors already attached, and include a hardware package that contains three matching female Bullet connectors for your speed controller, heatshrink to cover the bullet connectors and mounting screws. Since the HK series motors are primarily designed for Helicopter and Ducted Fan use, they do not include a prop adapter. If running a prop on this motor, you will need to purchase a prop adapter for a 3.17mm shaft (1/8 inch).

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. For the best overall combination of quality, performance, and value, give Scorpion Motors a try!

Note: This motor uses a 3.17mm bore pinion gear sold separately.

Specifications:
Stator Diameter: 22.0 mm (0.866 in)
Stator Thickness: 21.0 mm (0.827 in)
No. of Stator Arms: 9
No. of Magnet Poles: 6
Motor Wind: 6 Turn Delta
Motor Wire: 20-Strand 0.21mm (31 AWG)
Motor Kv: 4400 RPM / Volt
No-Load Current (Io): 2.89 Amps @ 10 volts
Motor Resistance (Rm): 0.016 Ohms
Max Continuous Current: 52 Amps
Max Continuous Power: 525 Watts
Weight: 79 Grams (2.79oz)
Outside Diameter: 27.9 mm (1.097 in)
Shaft Diameter: 3.17 mm (0.125 in)
Body Length: 33.6 mm (1.323 in)
Overall Shaft Length: 57.0 mm (2.244 in)

 Includes:

• (1)  Scorpion HKII-2221-6 Motor
• (3)  Female Connectors
• (3)  Heat Shrink
• (4)  M3 Screws

This product was added to our catalog on June 4, 2019
