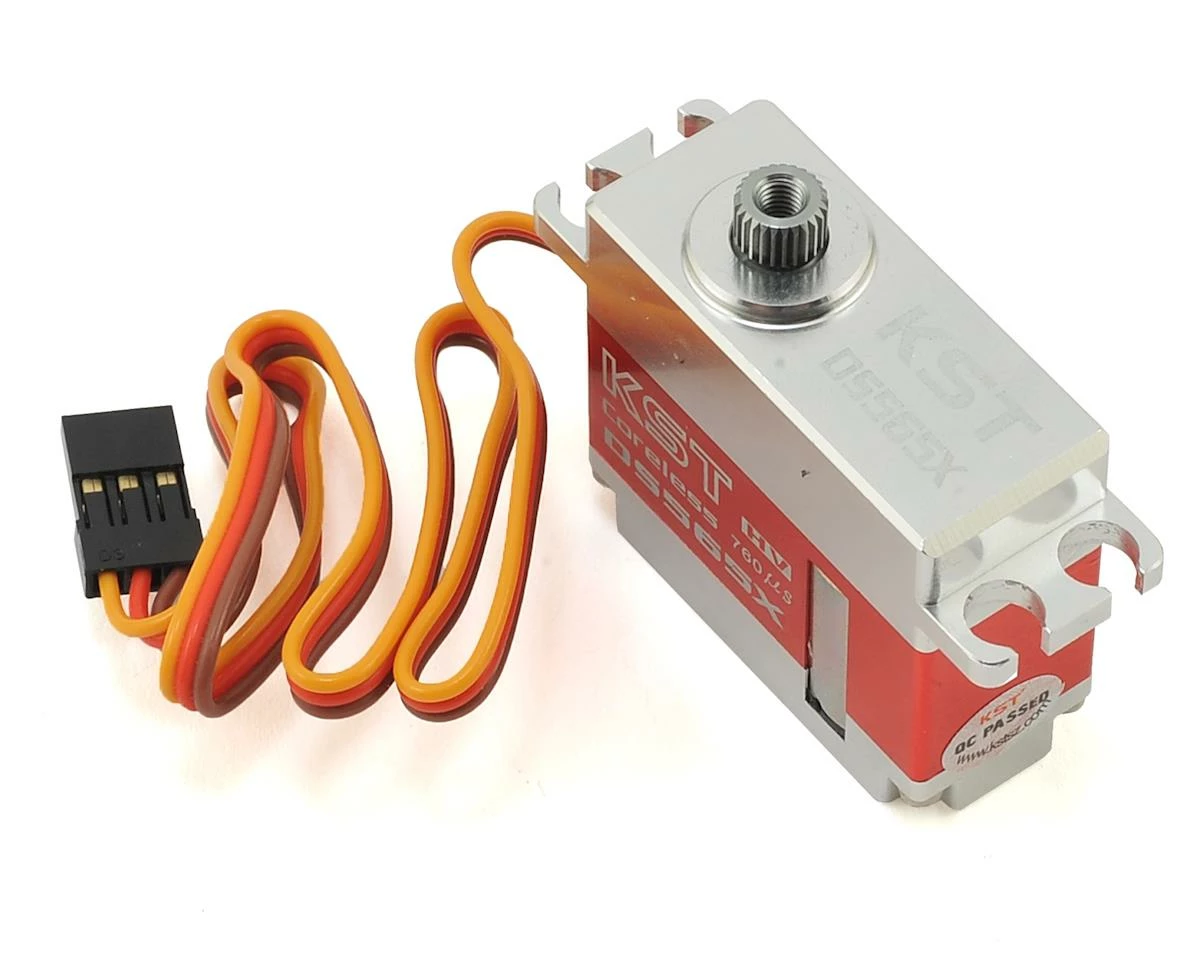

KST DS565X Mini Size Digital Servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos on the tail rotor! It’s critical to ensure your gyro has the capability to operate 760uS Tail Servos, ensuring that the KST 565X operates correctly.Β Β
Features:
- Mini size aluminum case
- Full metal gears
- Dual ball bearings
- HV compatible
- Lightning fast
- Coreless motorΒ
- Narrow Pulse – 760uS – Helicopter TailΒ Β Β
Specifications:Β Β Β Β
Operating Voltage:Β 6-8.4VΒ Β Β Β
Size:Β 35.5x15x32.7mmΒ Β
Pulse Width:Β 760uSΒ Β Β
Torque:Β 4.0kg.cm @ 6.0V; 6.0kg.cm @ 8.4VΒ Β Β Β
Speed:Β 0.06sec/60Β° @ 6.0V; 0.04sec/60Β° @ 8.4VΒ Β Β Β
Weight:Β 40gΒ Β Β Β
Working Frequency:Β 760us/560HzΒ Β Β
Motor:Β CorelessΒ Β Β Β
Ball Bearing:Β 2BBΒ
This product was added to our catalog on October 4, 2017
