Cheapest 😍 MKS Servos DS760 Titanium Gear Ultra Speed Standard Tail Servo w/Aluminum Case 👍

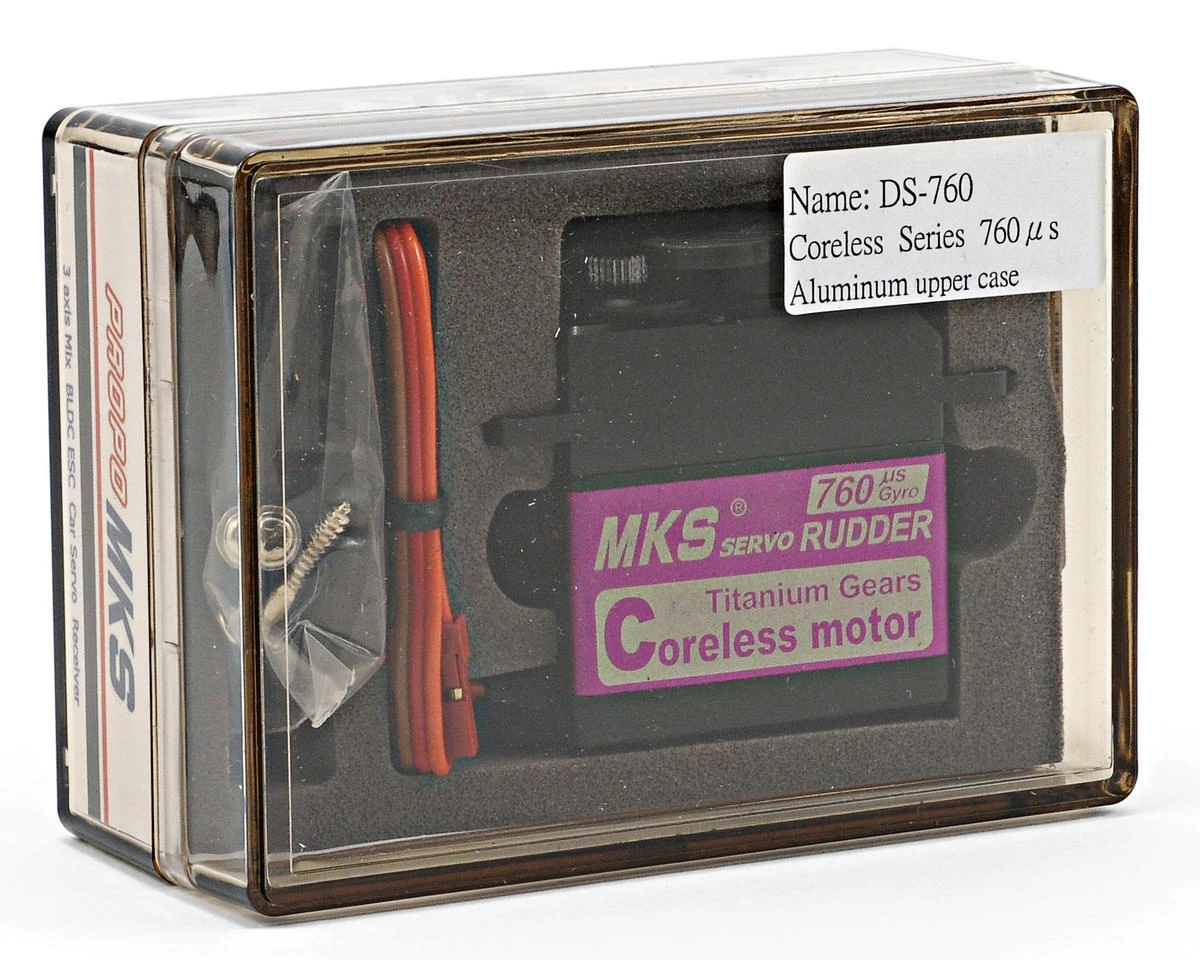

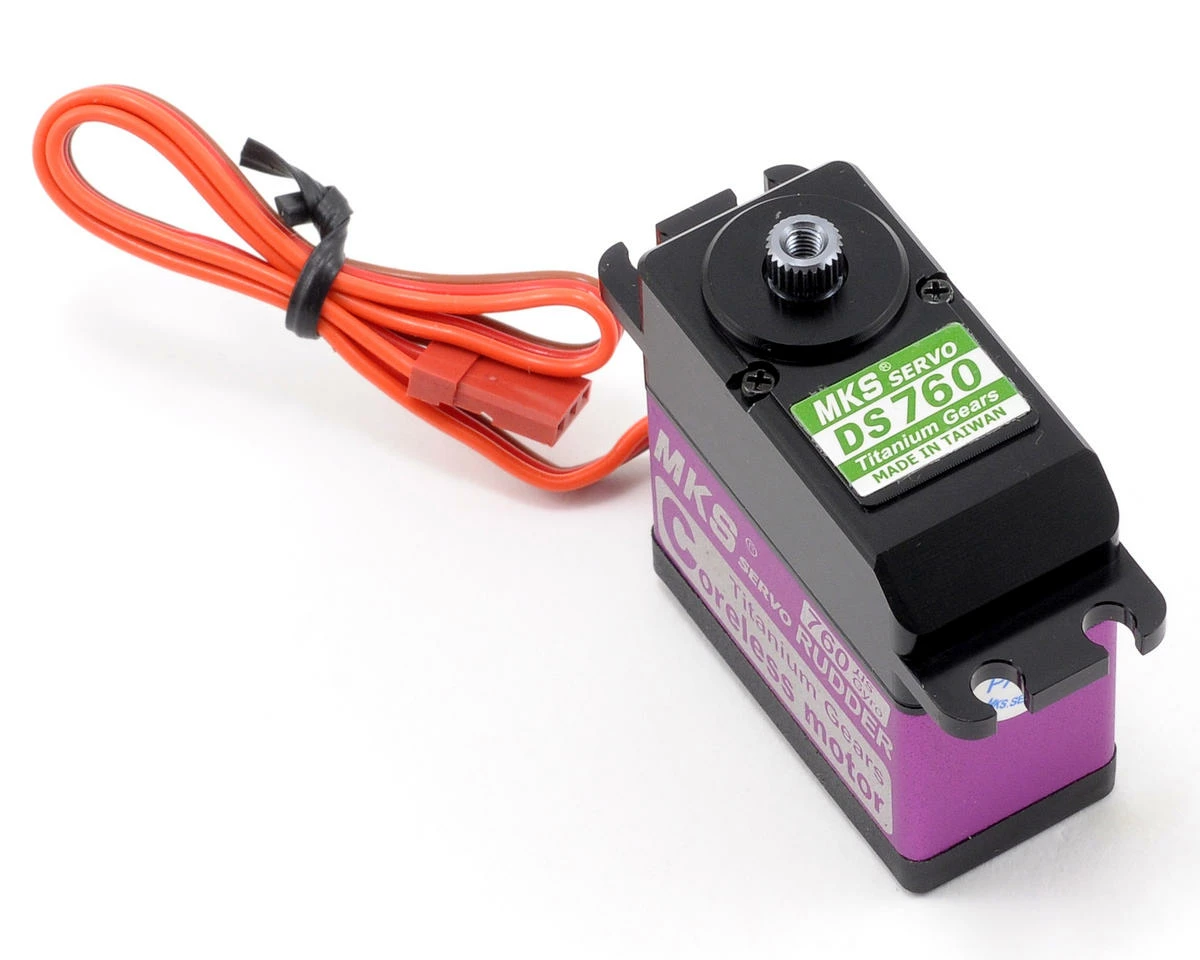

This is the MKS DS760 Titanium Gear Ultra Speed Standard Tail Servo. MKS DS Digital servos are high resolution servos that feature aluminum cases and titanium gears for the ultimate in performance and durability in helicopter tail applications.

DS760 (Narrow Band) Specifications:

• Dead band: 0.001ms (Default)
• Control System: +Pulse Width Control
• Working frequency: 760μs/560Hz
• (RX) Required Pulse: 3.0~5.0 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8~6.0 V DC
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed (4.8V): 0.034 sec/60° degrees at no load
• Operating Speed (6V): 0.027 sec/60° degrees at no load
• Stall Torque (4.8V): 54.17 oz/in (3.9 kg-cm)
• Stall Torque (6V): 67.78 oz/in (4.9 kg-cm)
• 360° Modifiable: NO
• Motor Type: Coreless Motor
• Potentiometer Drive: Direct Drive
• Driver Type: FET
• Bearing Type: Dual Ball Bearings
• Gear Type: metal gear
• Programmable: NO
• Connector Wire Length: 15.0 cm (5.9″)
• Dimensions: 40x20x40mm (1.57×0.78×1.57″)
• Weight: 75g (2.65oz)

This product was added to our catalog on June 27, 2011
