Coupon 🛒 Lynx Heli EOX 1611 Brushless Motor (5500kV) 🔔

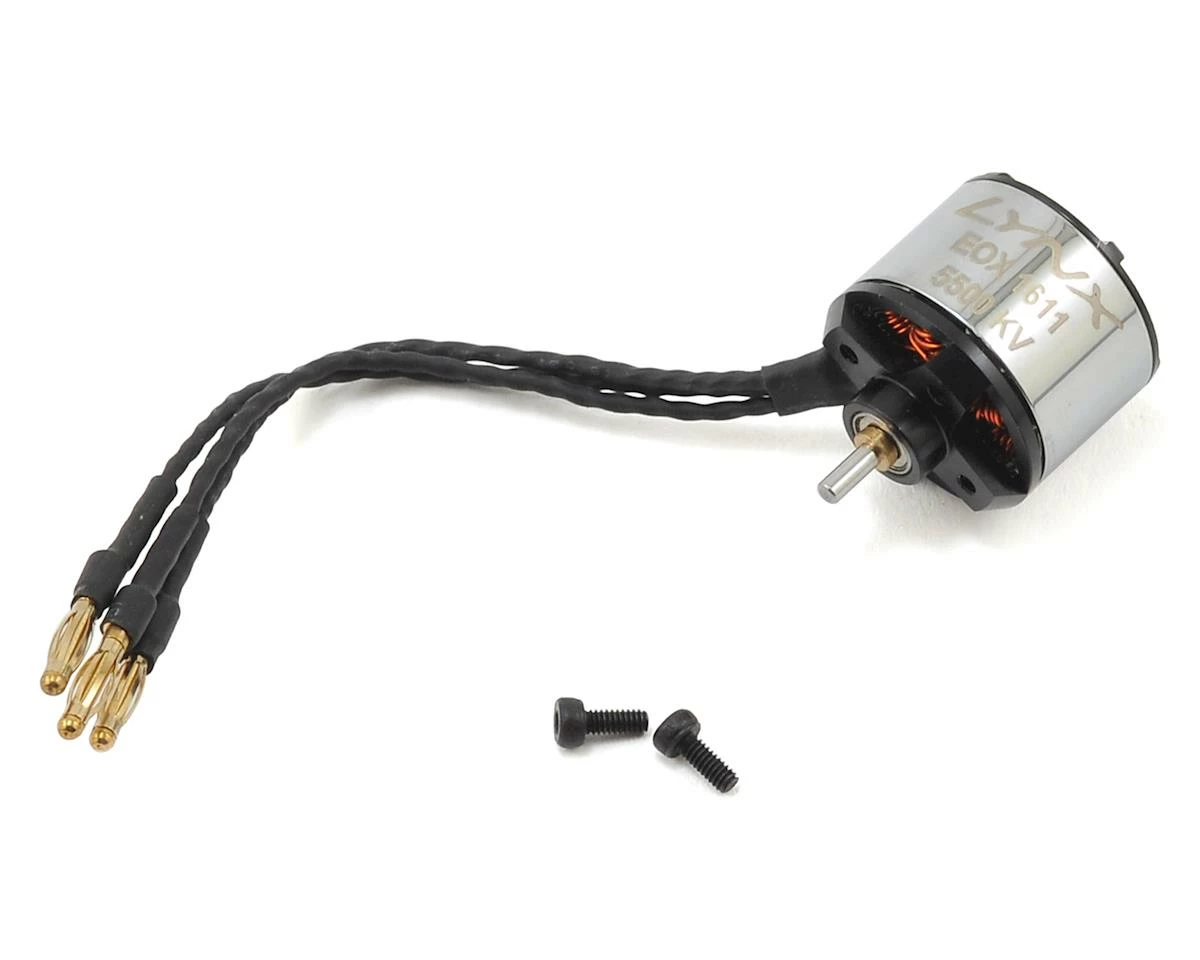

The Lynx Heli EOX-1611 5500kV Brushless Motor was developed by Lynx, to be a perfect fit for the Oxy Heli Oxy 2 helicopter.

The EOX-1611 features parallel 0.5mm diameter wire, hand wound for the highest efficiency, power, and lowest operational temperatures possible. Additionally, the high temperature rated Neodymium magnets when paired with high quality materials found only in the EOX series of motors, offers a complete all in one package of performance, and price. Designed around 3s LiPo, the EOX-1611 will be an incredible performer.

Additionally, the EOX-1611 motor can be used with 4s LiPo, but it is mandatory to use a headspeed governor management in order to prevent damage to the motor.

Specifications:
Motor kV (rpm/V): 5500
Input Voltage: 3s LiPo/ 4s LiPo possible – ONLY with Governor Management
Peak Current: 30A
Peak Power: 390 watts
Stator Diameter: 16mm
Stator Length: 11mm
Number of Stator Arms: 9
Number of Magnet Poles: 6
Wire Diameter: 0.5mm
Weight: 23.6g
Outside Diameter: 20.5mm
Body Length: 18.5mm
Shaft Diameter: Inner 3mm, outer 2mm
Shaft Length: 29.8mm
Motor Timing: 5 degrees
Drive Frequency: 8 KHz

This product was added to our catalog on April 18, 2017
