Outlet 🤩 Scorpion 83.7mm Extended Motor Shaft w/5mm End ✨

This is a Scorpion 83.7mm Extended Motor Shaft with 6mm End. The Scorpion HK-4025 motors are built with 8mm hardened steel shafts that will last through countless hours of flying fun, but occasionally, on a “Less than Perfect” landing, you may bend or break one. For these occasions, Scorpion offers factory replacement shafts for all the HK-4025 series Scorpion Helicopter Motors.

The shaft for the HK-4025 series motors measures 8mm in diameter, and is 83.7mm in long. The Stock HK-4025 motors have a 6mm output shaft end on them to allow the user to install 6mm pinion gears. This shaft kit is designed with a 5mm output end for those helicopters that have the stock pinion gears with a 5mm inner bore. The shaft kit will also fit other brushless motors that require an 8mm shaft of this length with a 5mm end. The shafts can be cut shorter with a Dremel tool and a cut-off wheel if necessary to fit other motors.

Note: The shafts in the Scorpion motors are a slight press fit into the aluminum front housing. The shafts will not just slide out when the set screws are removed. They need to be pressed out in a bearing press, or in a drill press, with the front housing of the motor supported in a block of wood to prevent warping the front housing.

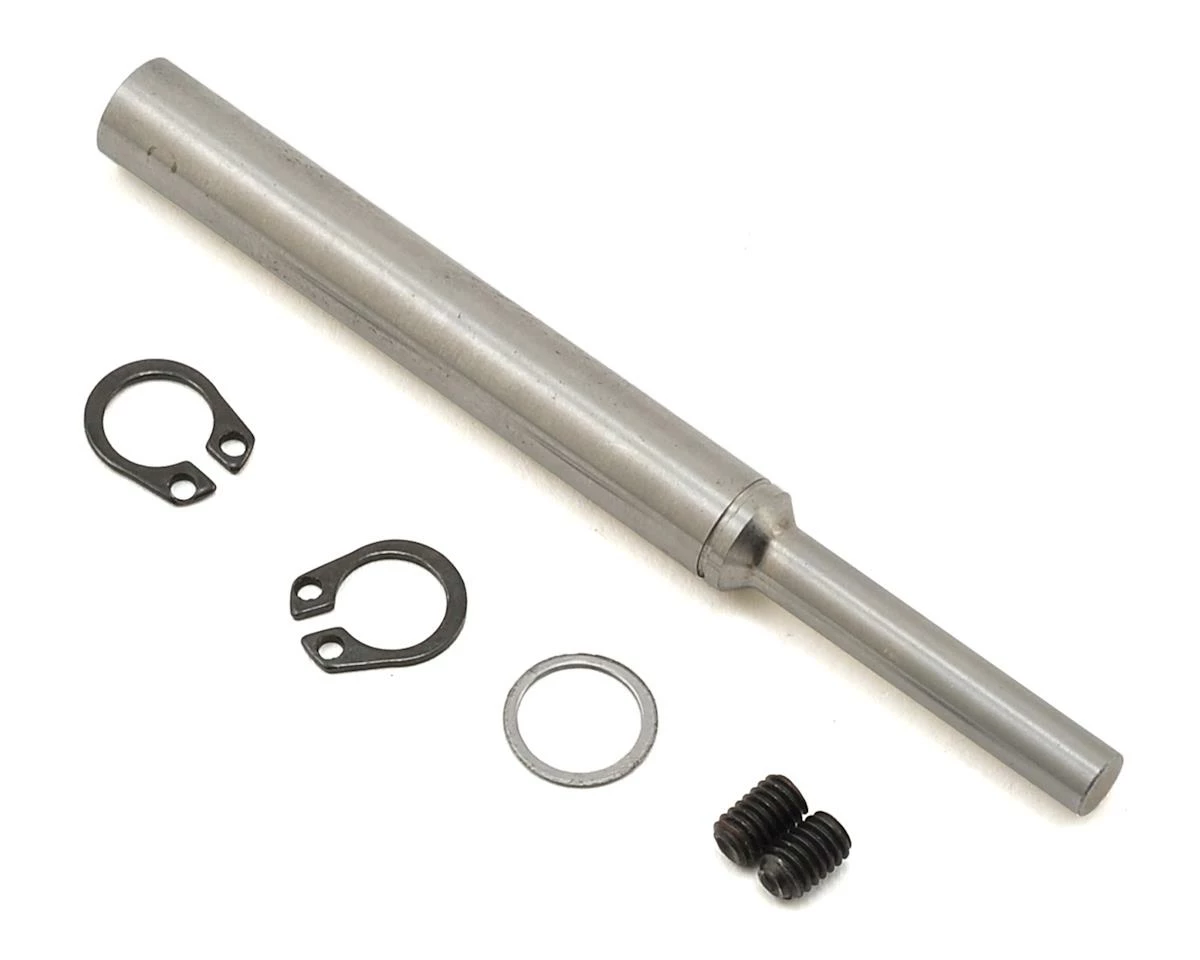

Includes:

• (1) HK4025 Motor Shaft (5mm)
• (1) Washer
• (2) C-Clip

Weight including packaging: 30g

This product was added to our catalog on January 20, 2017
