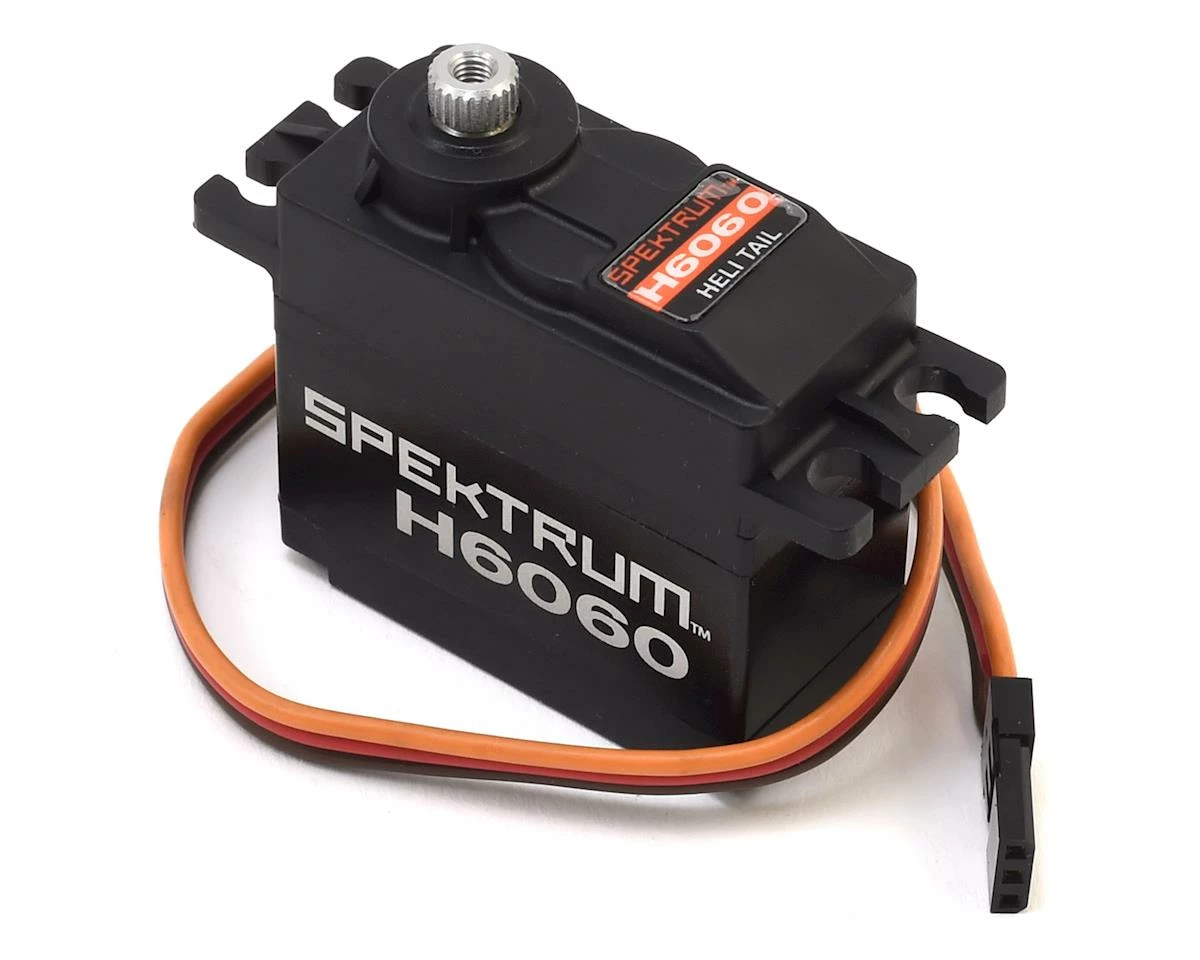

Outlet 🥰 Spektrum RC H6060 Mid-Torque Ultra-Speed Helicopter Tail Servo 😉

The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.

Features

• Standard size servo for 500 size Helicopter models and smaller
• 86oz Torque and .056 sec speed at 6.0v
• 4.8v-6.0v input voltage
• Long 10 inch (255mm) connector wire to reduce the need for extensions
• 23 Tooth spline
• Bearing supported output spline

Specifications:
Size Category: Standard
Type: Digital
Application: Heli Tail
Torque: 86 oz-in (6.2 kg-cm) @ 6.0V
Speed: 0.056 sec/60 deg @ 6V at no load
Length: 1.57 in (39.9 mm)
Width: 0.78 in (19.8 mm)
Height: 1.57 in (39.9 mm)
Weight: 2.2 oz (62g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Coreless
Connector Type: Z-Connector
Gear Type: Metal
Gear Material: Alloy
Voltage: 4.8-6.0V
Deadband: Ex: 8µs

This product was added to our catalog on July 17, 2018
