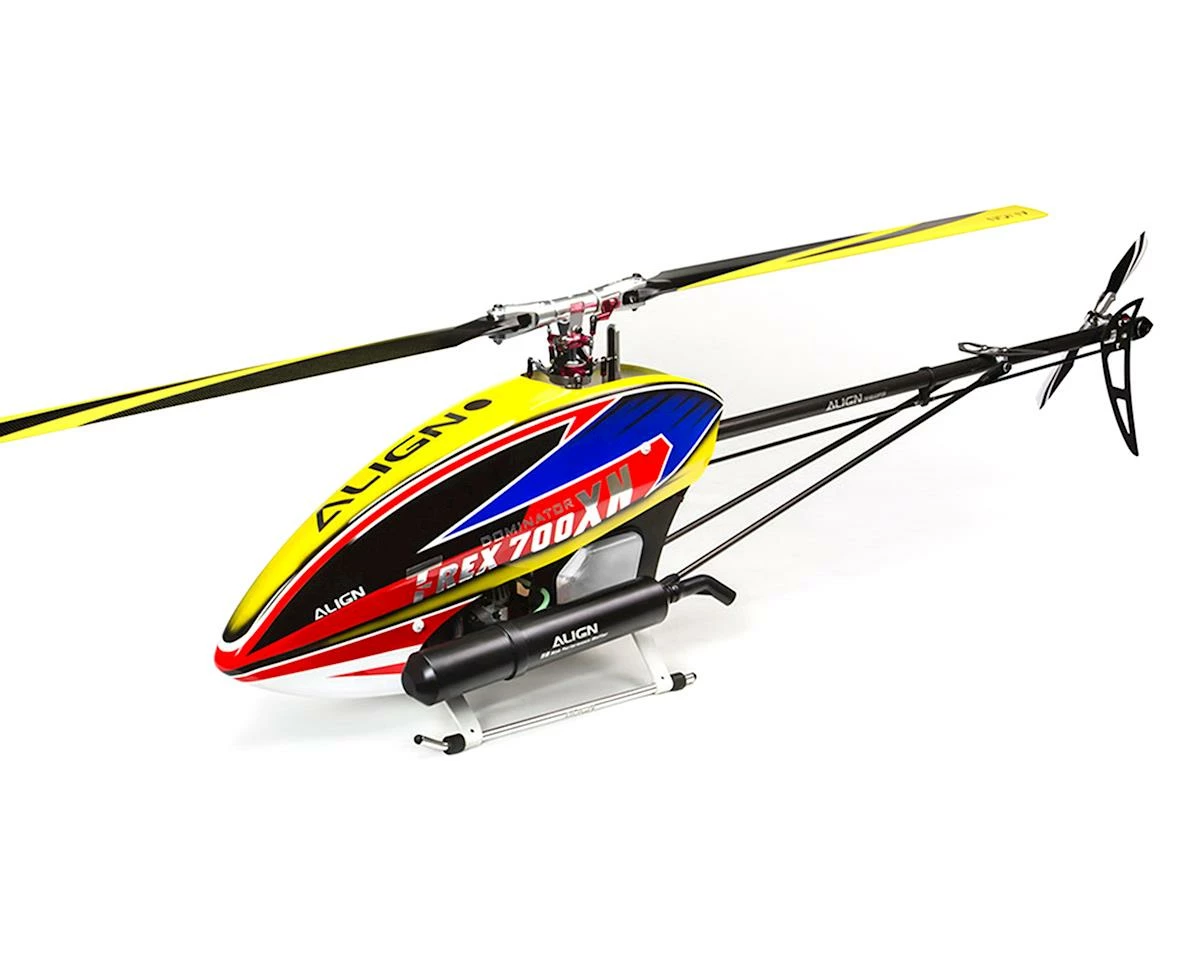

The Align T-Rex 700XN Nitro Helicopter Combo is a refreshing release on a mostly classic design found deep within T-Rex standards. Utilizing proven components from the 700X Electric helicopter, direct to swashplate concept has been moved over to the nitro frame, along with the excellent 700EFL Flybarless Rotor Head. Update design concepts include a narrow frame design that decreases gear wear and frame flex in flight in the most demanding maneuvers, an engine stack moved further forward allows for the fuel tank to be placed directly under the mainshaft which ensures that CG does not change from start to end, and lastly a new steel alloy clutch liner allows for incredible power delivery and improved lifespan.Β
Features:
- Direct to Swash Servo Control
- Narrow Frame Design
- Steel Clutch Liner
- CG Neutral Fuel Tank Location
- 700EFL Rotor Head
- Nitro Specific “Blonde Yellow” Rotor Blades
- HV Voltage Regulator
Specification:Β
Length:Β 1346mmΒ
Height:Β 384mmΒ
Width:Β 202mmΒ
Main Blade Length:Β 700mmΒ
Main Rotor Diameter:Β 1570mmΒ
Tail Rotor Diameter:Β 281mmΒ
Motor Drive Gear:Β 13TΒ
Main Drive Gear:Β 107TΒ
Autorotation Tail Drive Gear:Β 104TΒ
Tail Drive Gear:Β 22TΒ
Drive Gear Ratio:Β 1: 8.23: 4.72Β
Weight (RTF – Estimated, Depending on Set Up):Β 4540g
Includes:Β
- (1) T-Rex 700XN Combo Kit
- (1) 700 “Blonde Yellow” Carbon Fiber Blade set
- (1) 106mm 3K Carbon Fiber Tail Blade set
- (3) BL820M High Voltage Brushless Servo
- (1) BL825M High Voltage Brushless Servo
- (1) DS530 Digital Servo
- (1) B6TX 2 in 1 Voltage Regulator Combo
- (1) Governor Sensor
Needed to Complete:Β
- Transmitter (7-channel or more, helicopter system)
- Receiver (7-channel or more)
- 0.91 – 1.20 size Nitro Engine
- Nitro Engine Muffler
- Flybarless Gyro
- 15-30% Nitro Fuel
- Digital Pitch Gauge
